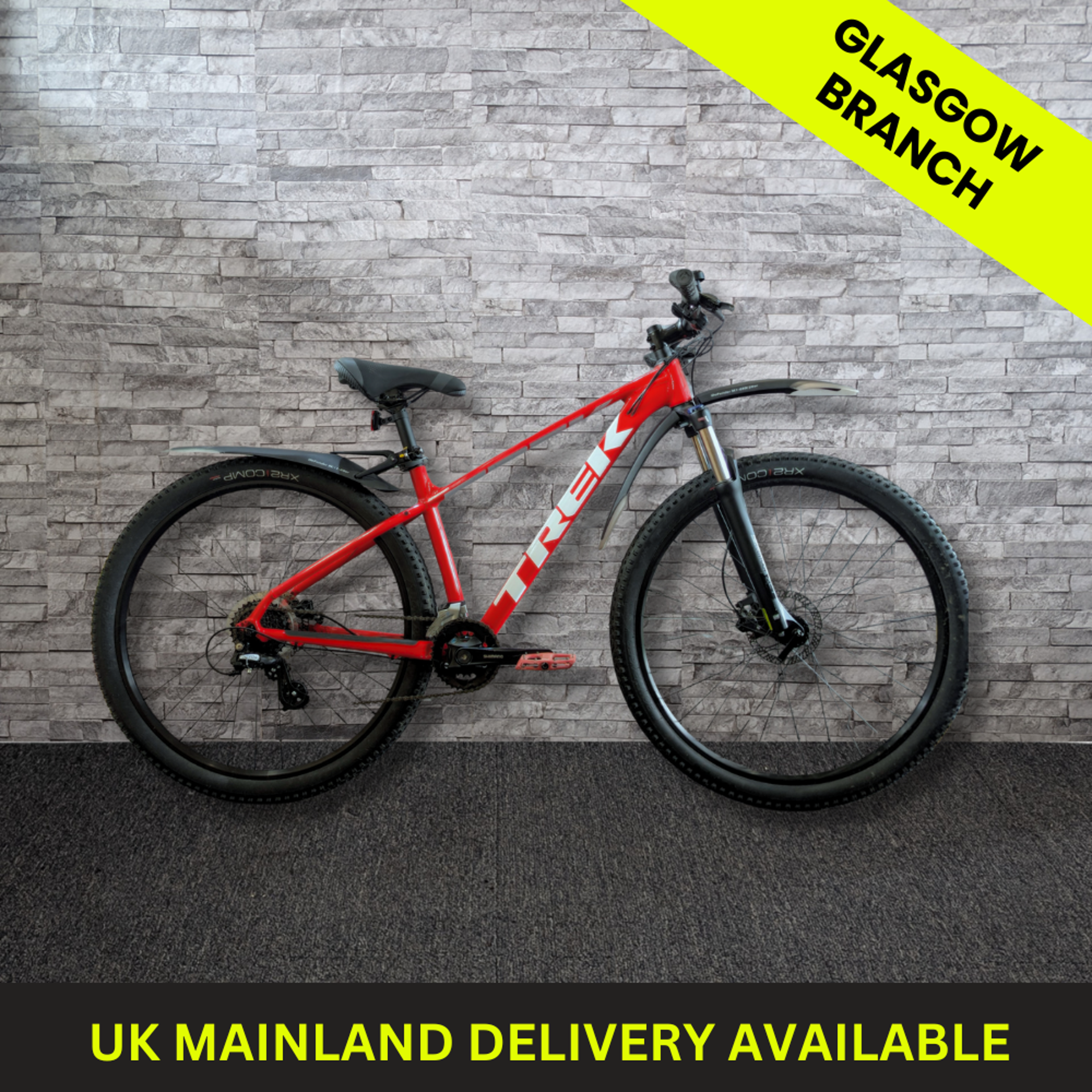

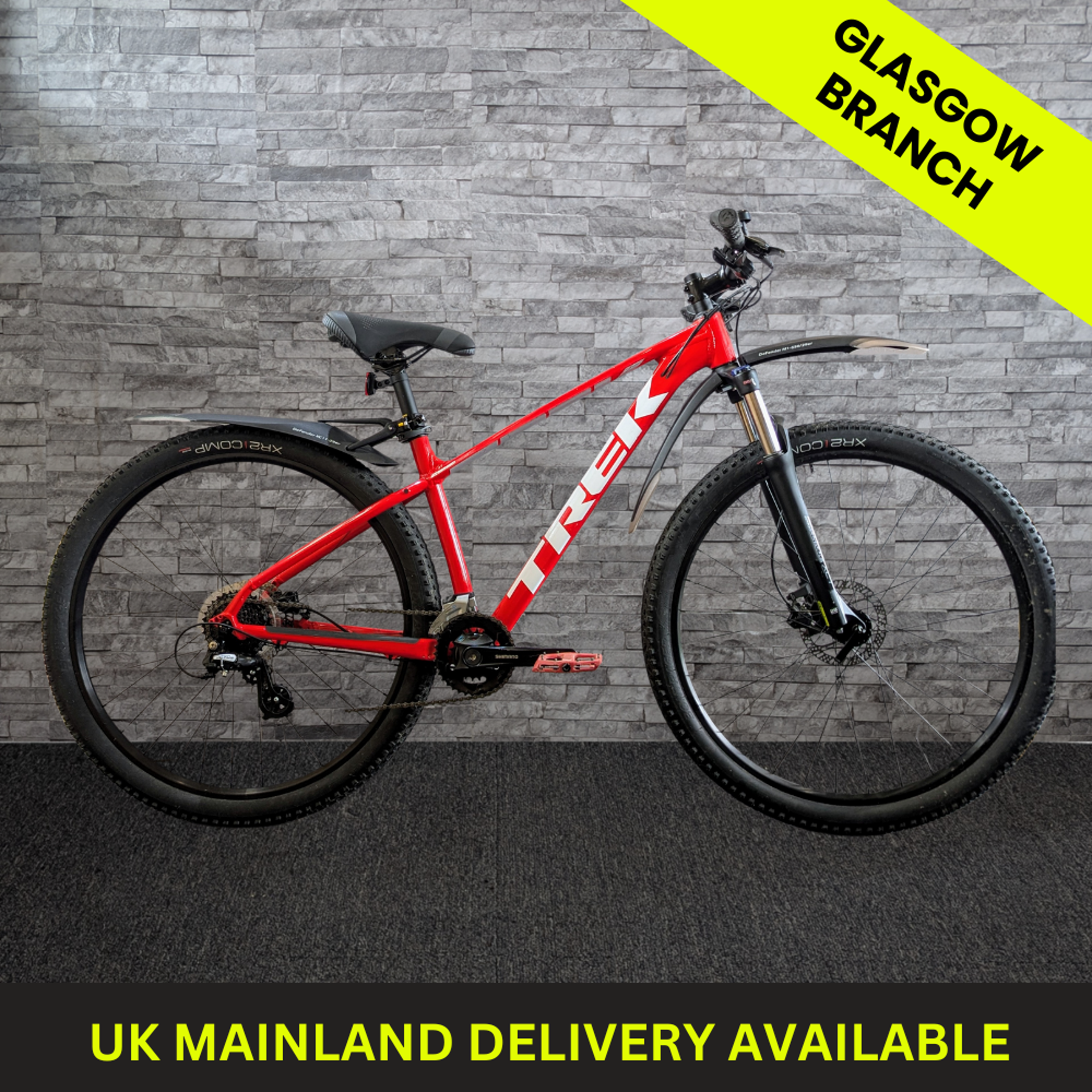

Trek Marlin 5 MTB - Medium Frame in great condition and beautiful Red.
Trek Marlin 5 MTB - Medium Frame in great condition and beautiful Red.
Trek

TREK MARLIN 5 MTB MEDIUM FRAME

£425.00 £600.00 29% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

TREK MARLIN 5 MTB MEDIUM FRAME

Season:2023

Brand:Trek

Code:TREKMARL5REDMED

Looking for a versatile mountain bike that’s perfect for trails, commutes, and weekend adventures? The Trek Marlin 5 (2023) in stunning Radioactive Red is ready for you!
Bike Details:
✅ Size: Medium
✅ Condition: Excellent
✅ Price: £400
✅ 3-Month Warranty Included
Key Features:
✔ Lightweight Alpha Silver Aluminum frame with internal cable routing
✔ SR Suntour suspension fork with lockout – smooths bumps, efficient on-road
✔ Shimano Altus 2×8 drivetrain – wide gear range for hills and flats
✔ Tektro hydraulic disc brakes – reliable stopping in all weather
✔ Mounts for rack and kickstand – perfect for commuting or touring
✔ Blendr stem for easy accessory integration
Technical Information
Frameset

FrameAlpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*ForkSize: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: XS
SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: S , M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR, 100 mm travel

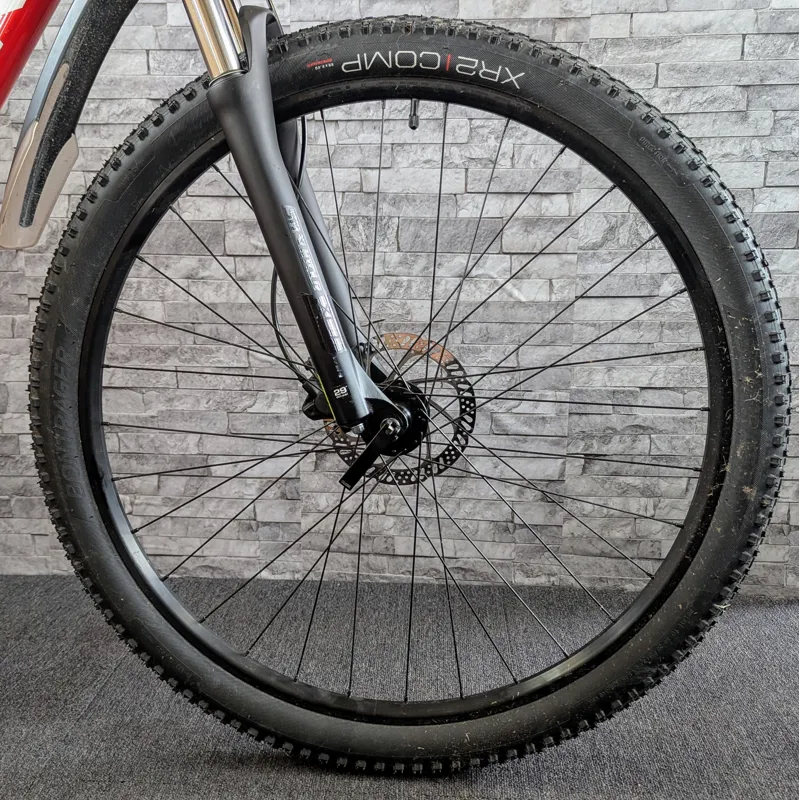

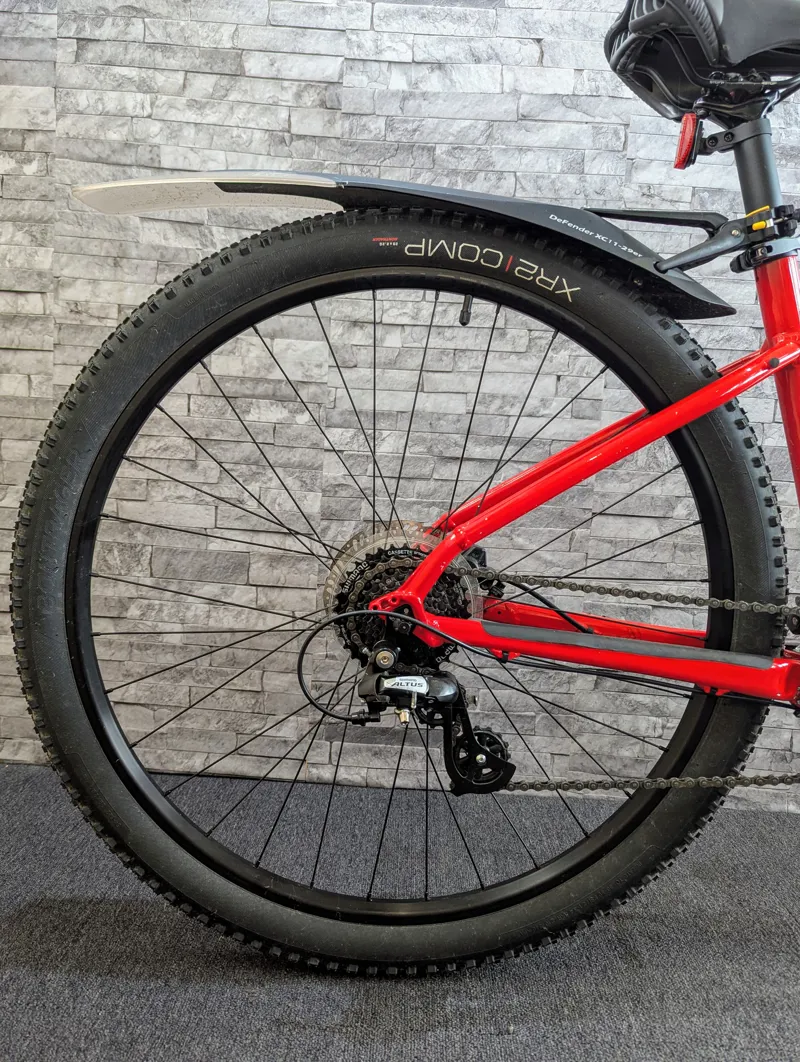

Wheels

Hub frontFormula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rearFormula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
*RimSize: XXS
Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
Size: XS , S , M , ML , L , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes14 g stainless steel
*TyreSize: XXS
Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20"
Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Drivetrain

ShifterShimano Altus M315, 8-speed
Front derailleurShimano Altus M315, 34.9 mm clamp, top swing, dual pull

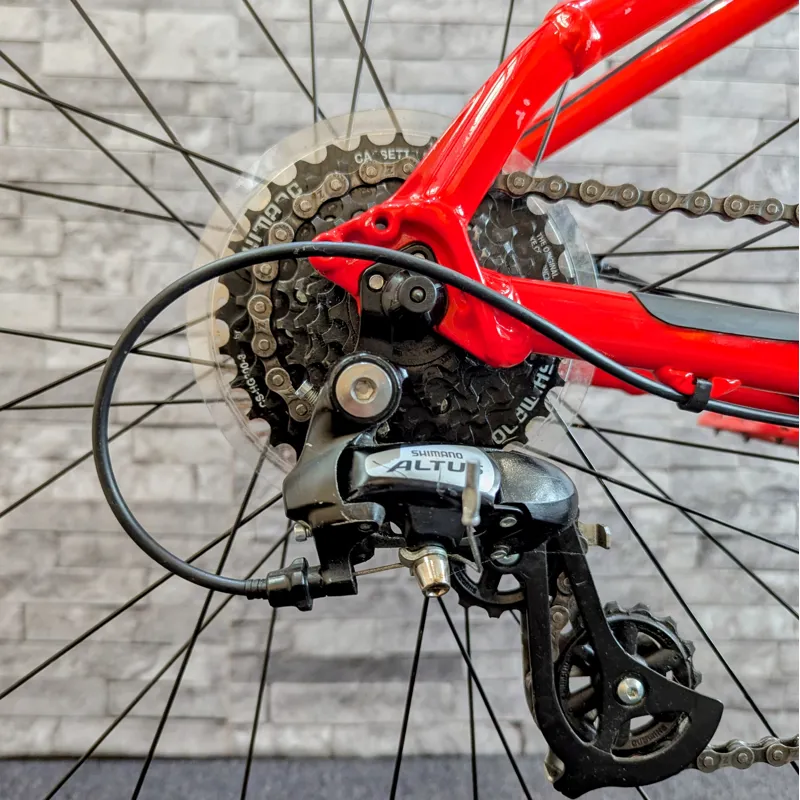

Rear derailleurShimano Altus M310

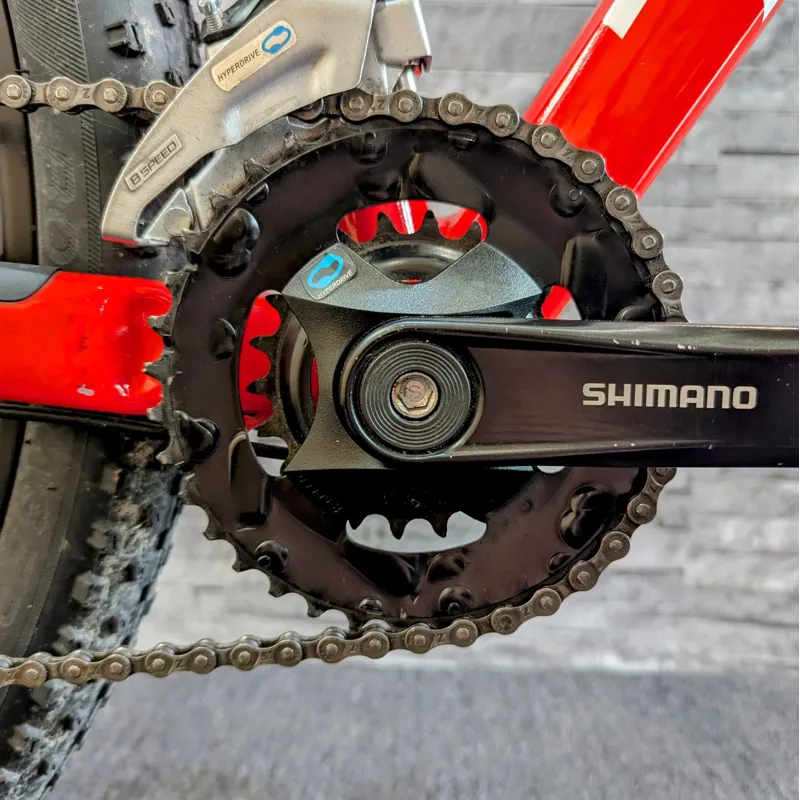

*CrankSize: XXS
Prowheel TM-CY10, 36/22, 160 mm length
Size: XS , S , M
Shimano M315, 36/22, 170 mm length
Size: ML , L , XL , XXL
Shimano M315, 36/22, 175 mm length
Bottom bracketVP BC73, 73 mm, threaded cartridge
CassetteShimano 8-speed, 12-32T
ChainKMC Z8.3, 8 speed
PedalVP-536 nylon platform
Components

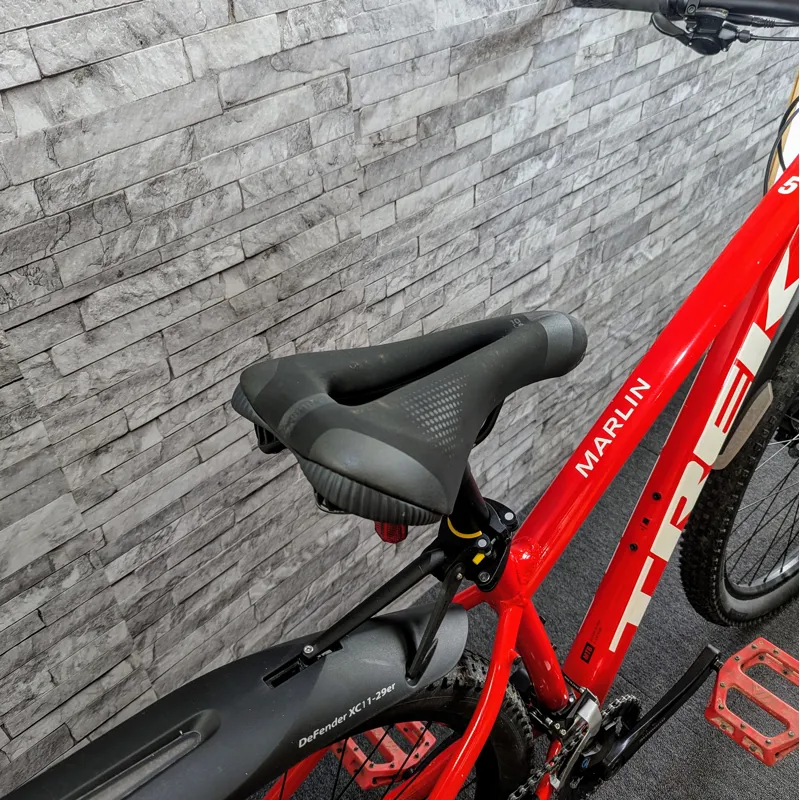

SaddleBontrager Arvada, steel rails, 138 mm width
*SeatpostSize: XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length
Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

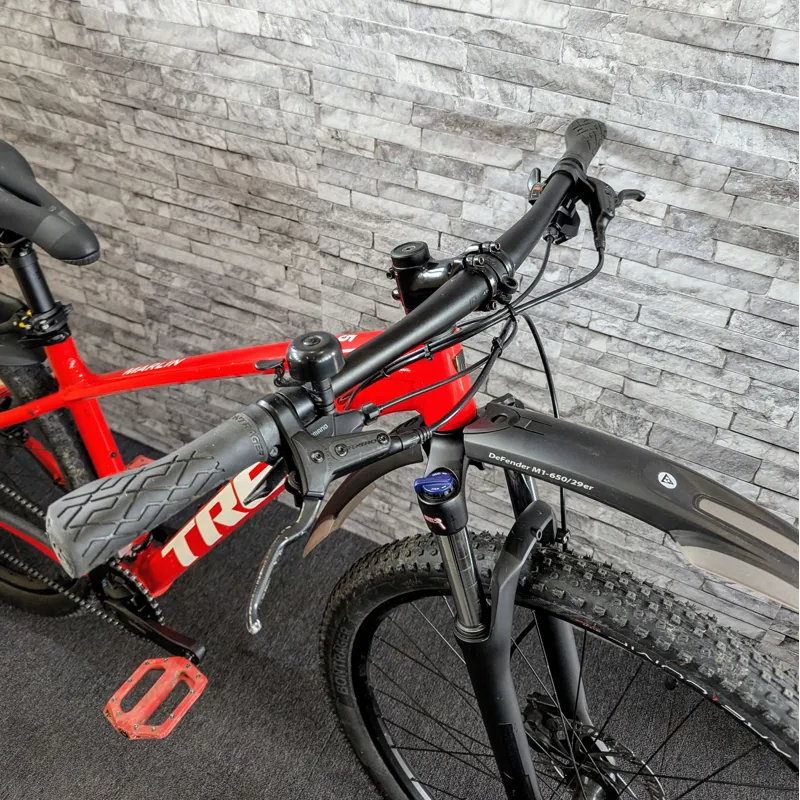

*HandlebarSize: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
GripsBontrager XR Endurance Comp
*StemSize: XXS
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL , XXL
Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head setSemi-integrated, 1-1/8"
*BrakeSize: XXS , XS , S
Tektro HD-M276 hydraulic disc, short-reach lever
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc
Weight

WeightM - 30.80 lbs / 13.9725 kg
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
