Trek

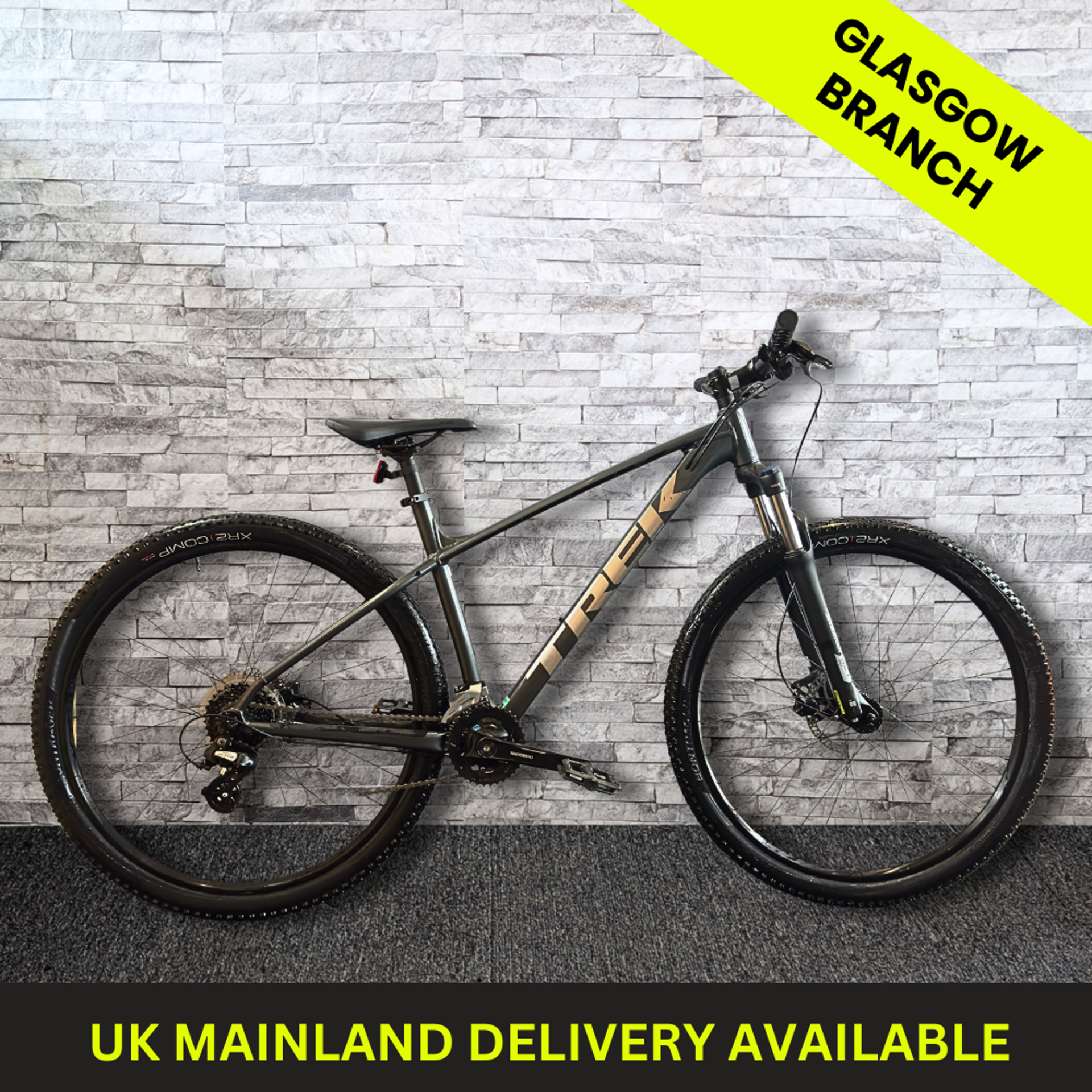

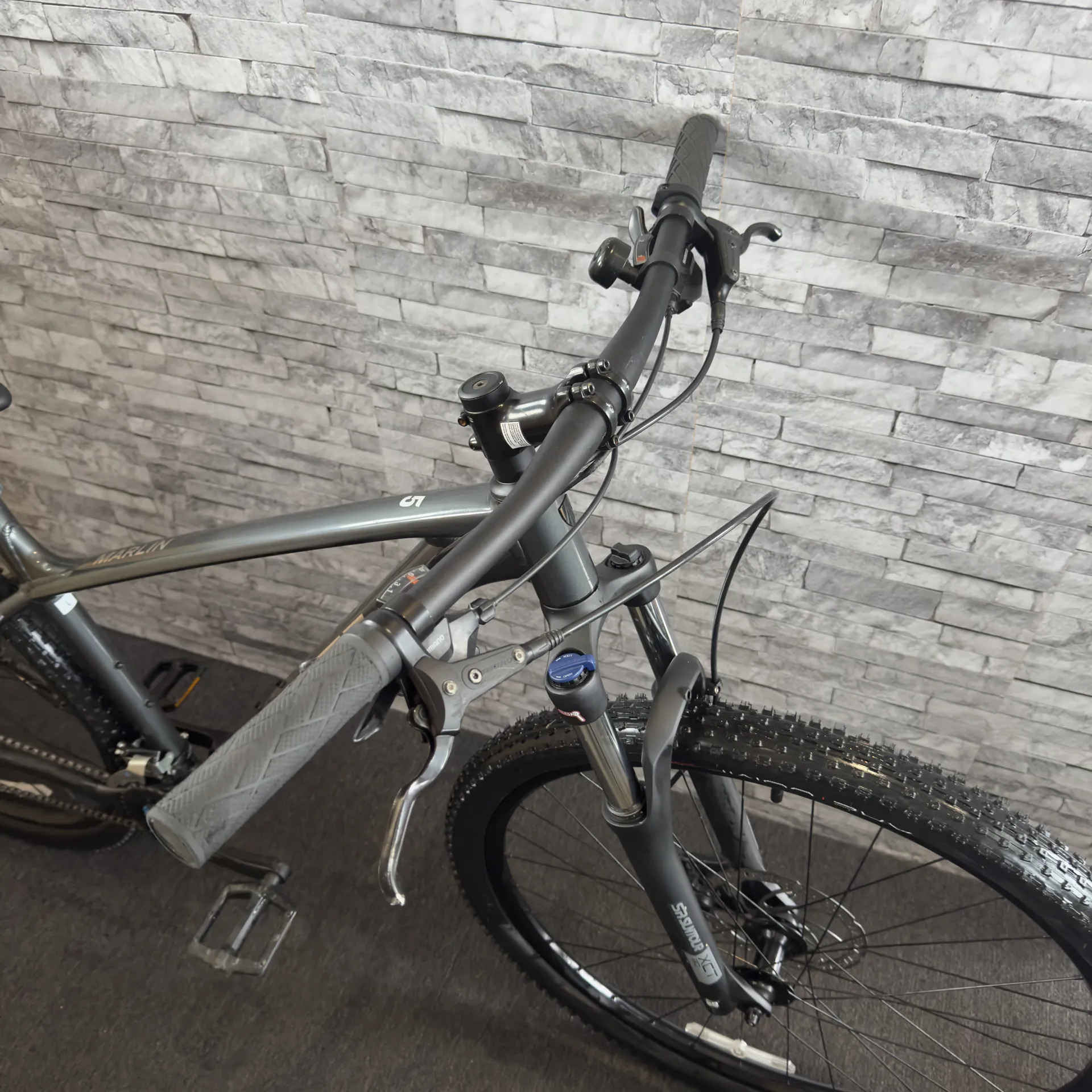

TREK MARLIN 5 LARGE FRAMED MOUNTAIN BIKE

£400.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

TREK MARLIN 5 LARGE FRAMED MOUNTAIN BIKE

Season:2023

Brand:Trek

Code:TREK MARLIN 5 GREY LARGE

You're new to the trail and you’re looking for a real mountain bike that doubles as a commuter – and you want it all at an exceptional value.

A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, 2x8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a terrain-smoothing suspension fork with a lockout.

The Marlin 5 is a great ride for all your adventures. But it's also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.

Technical Information

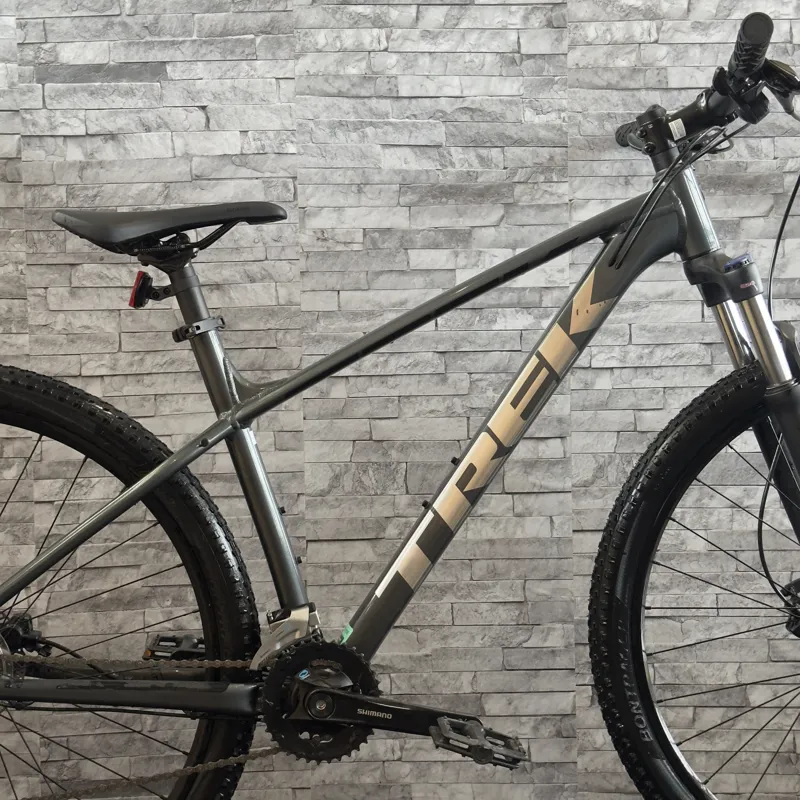

  • Frame
    Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

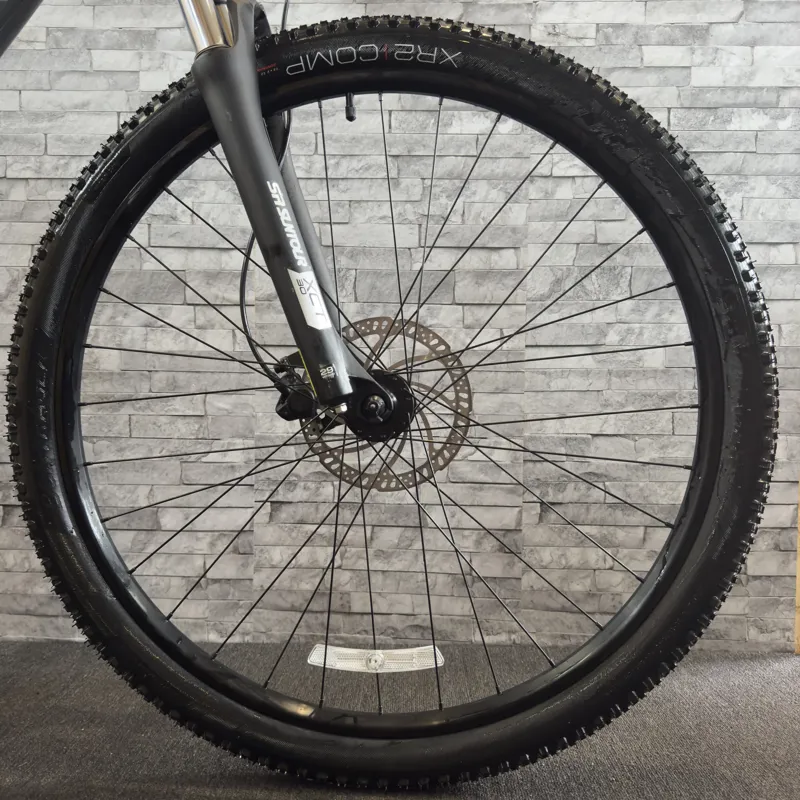

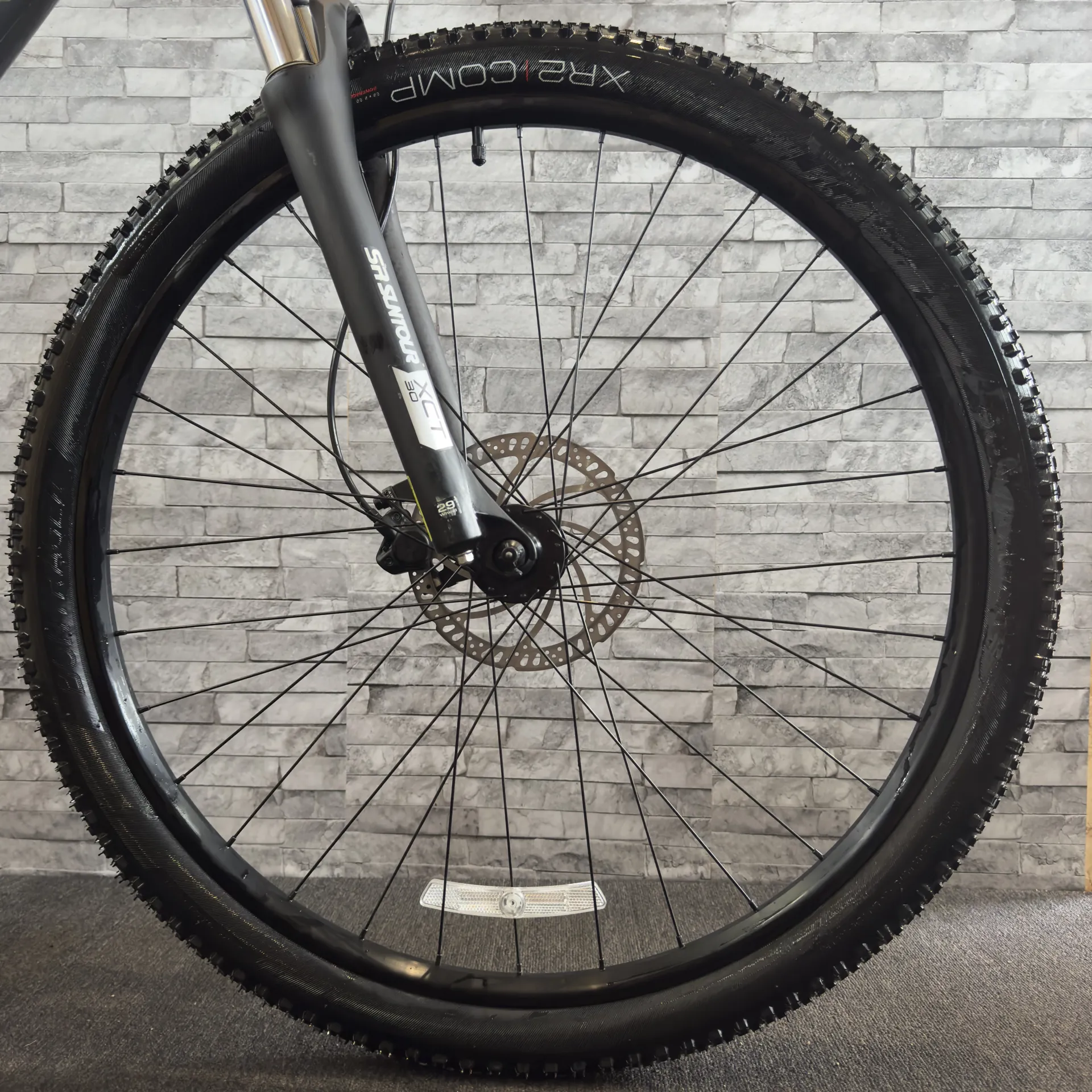

  • Fork
    Size: XXS, SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel
    Size: XS, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
    Size: XS, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 80mm travel
    Size: S, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
    Size: S/M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 100mm travel
    Size: M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel
  • Hub front
    Formula DC-20, alloy, 6-bolt, 5x100mm QR
  • Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
  • Rim
    Size: XXS, Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve
    Size: XS/S/M/ML/L/XL/XXL, Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
  • Spokes
    14g stainless steel

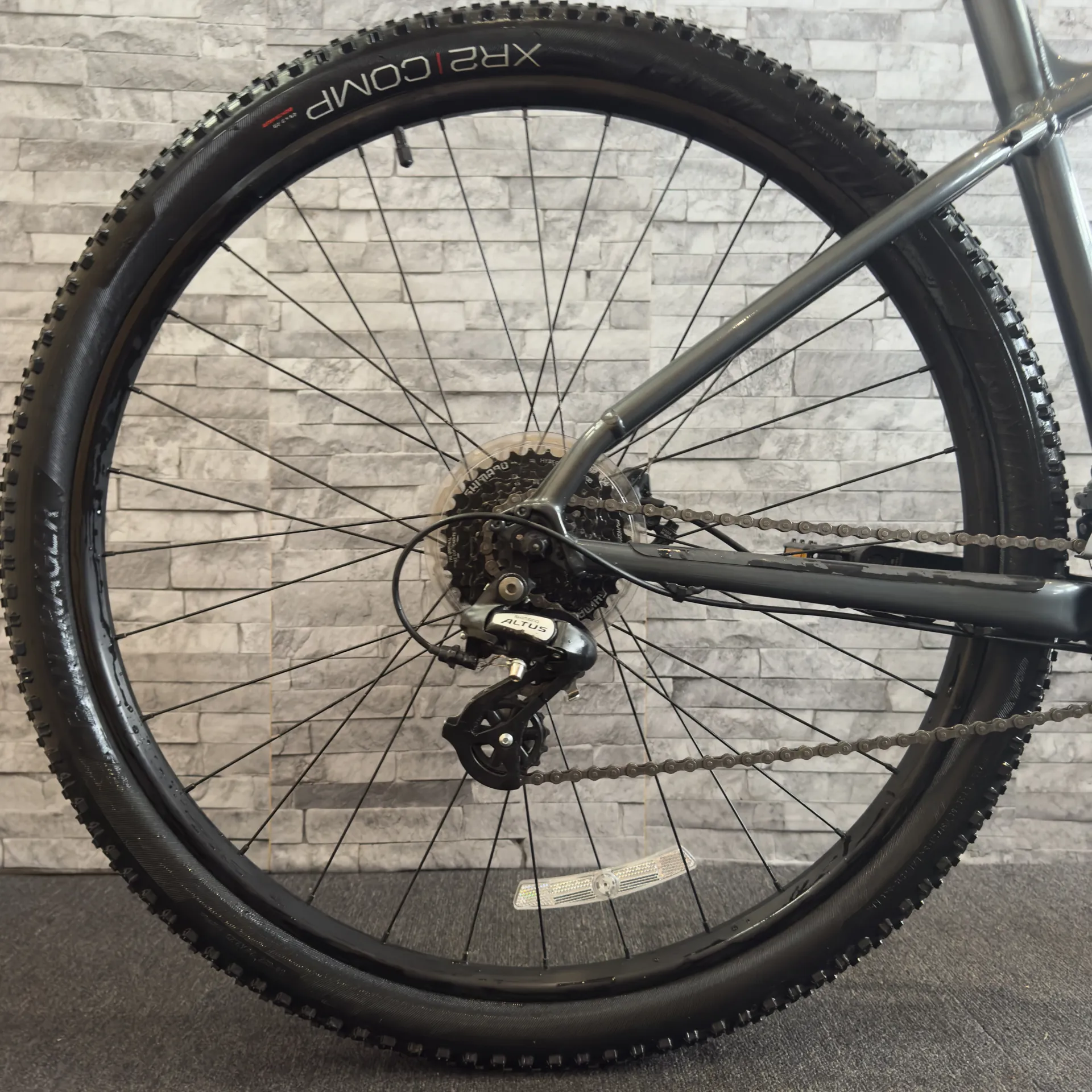

  • Tire
    Size: XXS, Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
    Size: XS/S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
    Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
  • Shifter
    Shimano Altus M315, 8 speed
  • Front derailleur
    Shimano Altus M315, 34.9mm clamp, top swing, dual pull

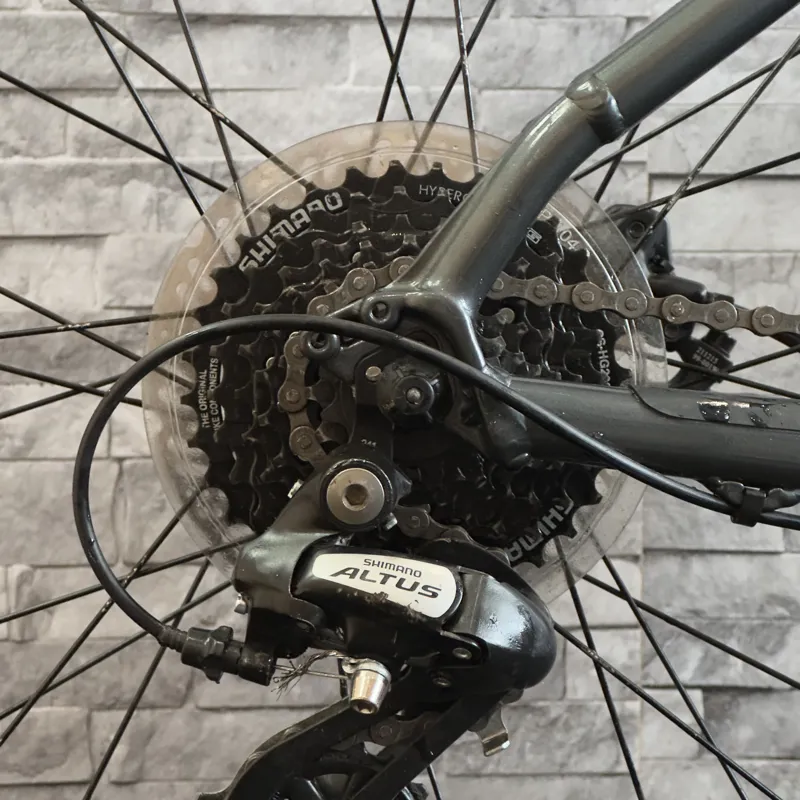

  • Rear derailleur
    Shimano Altus M310

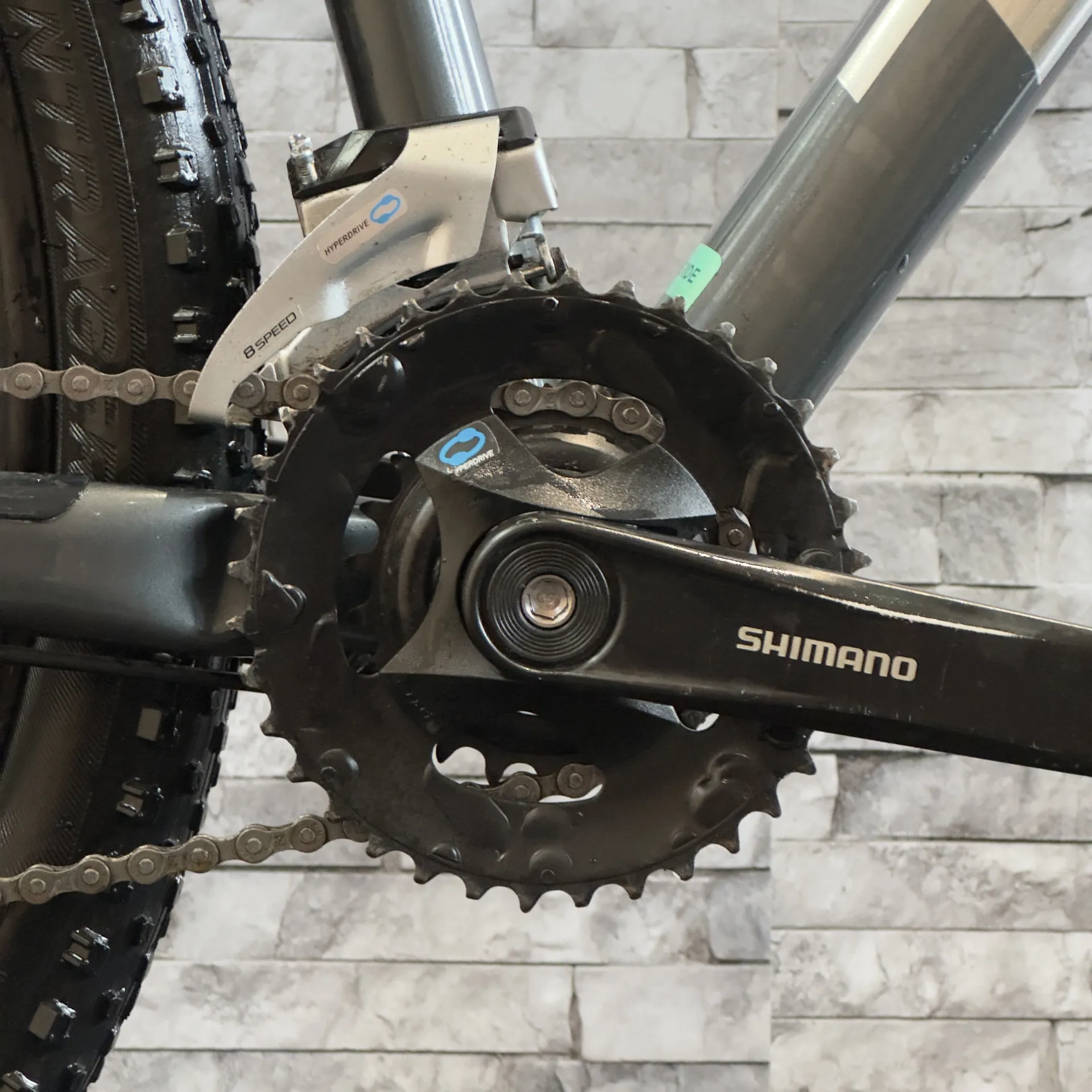

  • Crank
    Size: XXS, Prowheel TM-CY10, 36/22, 160mm length
    Size: XS/S/M, Shimano M315, 36/22, 170mm length
    Size: ML/L/XL/XXL, Shimano M315, 36/22, 175mm length
  • Bottom bracket
    VP BC73, 73mm, threaded cartridge
  • Cassette
    Shimano HG200, 12-32, 8 speed
  • Chain
    KMC Z8.3, 8 speed
  • Pedal
    VP-536 nylon platform

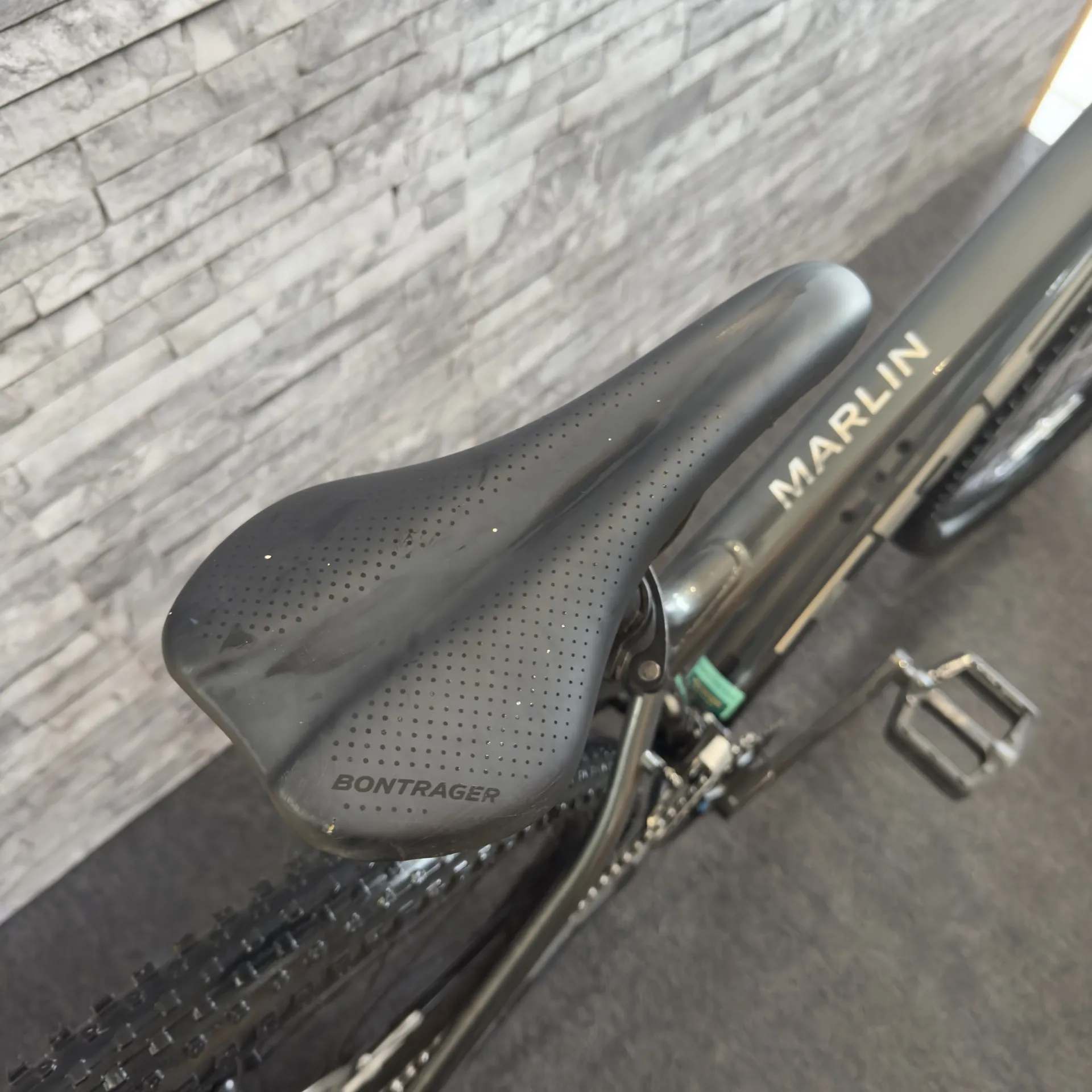

  • Saddle
    Bontrager Arvada, steel rails, 138mm width
  • Seatpost
    Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length
    Size: XS/S/M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length
    Size: ML/L/XL/XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
  • Handlebar
    Size: XXS/XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    Size: S/M/ML/L/XL/XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
  • Grips
    Bontrager XR Endurance Comp, lock-on
  • Stem
    Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
    Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
    Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
    Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
    Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
    Size: XL/XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
  • Headset
    Semi-integrated, 1-1/8''
  • Brake
    Size: XXS/XS/S, Tektro HD-M276 hydraulic disc, short reach lever
    Size: M/ML/L/XL/XXL, Tektro HD-M275 hydraulic disc
  • Weight
    M - 30.80 lbs / 13.9725 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
