**Please Note**
Expected delivery from the supplier on this bike is currently around 2 weeks.
Light. Powerful. Built to Fly.
The Amflow PX Carbon is a seriously capable full-suspension electric mountain bike that combines huge power with impressively low weight and agile handling.
Built around an ultra-light carbon frame and powered by the latest Avinox M2S Drive Unit, the PX Carbon delivers the performance you'd expect from a full-power e-MTB without the bulky feel traditionally associated with powerful electric mountain bikes.
With 150Nm maximum torque, 1,500W peak power, a 700Wh battery, 160mm FOX suspension and up to 40 geometry configurations, the PX Carbon is built for riders who want to climb faster, descend harder and explore further.
AVINOX M2S – UP TO 150NM TORQUE

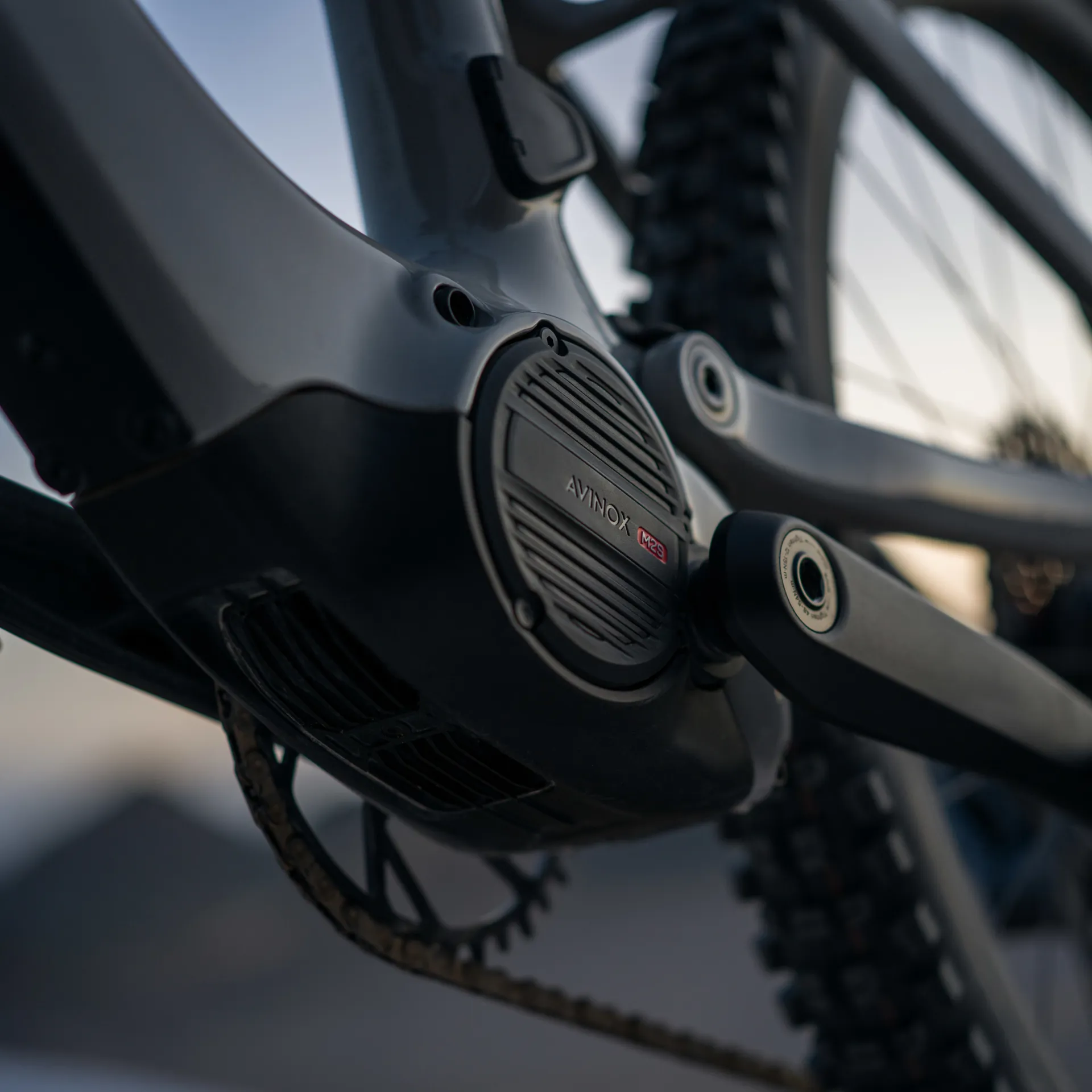

At the heart of the PX Carbon is the incredibly compact Avinox M2S Drive Unit.
Weighing just 2.59kg, the M2S delivers 130Nm nominal torque and up to an incredible 150Nm in Boost mode, with peak power reaching 1,500W.
Multiple high-precision sensors continuously analyse your riding and adjust assistance to provide smooth, natural-feeling power.
The intelligent Auto mode can automatically adapt assistance according to the terrain and your riding, while Boost mode unleashes maximum performance when you're facing particularly steep or challenging climbs.
700WH HIGH-CAPACITY BATTERY
The PX Carbon uses a lightweight 700Wh integrated battery, providing an excellent balance between range and overall bike weight.
Amflow quotes a maximum range of up to 144km under its specified Eco-mode test conditions, although real-world range will vary according to terrain, assistance level, rider weight, weather and riding style.
The battery is paired with Amflow's 508W fast charger, allowing you to recharge quickly and spend more time riding.
ULTRA-LIGHT CARBON FRAME
The PX Carbon is designed around an impressively lightweight carbon frame weighing approximately 2.4kg.
This lightweight construction helps give the PX its agile, responsive character while retaining the strength and stiffness required for demanding trail riding.
It's an e-MTB designed to feel like a proper mountain bike – just with an enormous amount of assistance when you need it.
160MM FOX PERFORMANCE SUSPENSION
The standard PX Carbon features premium FOX Performance suspension, developed to provide excellent control across demanding terrain.

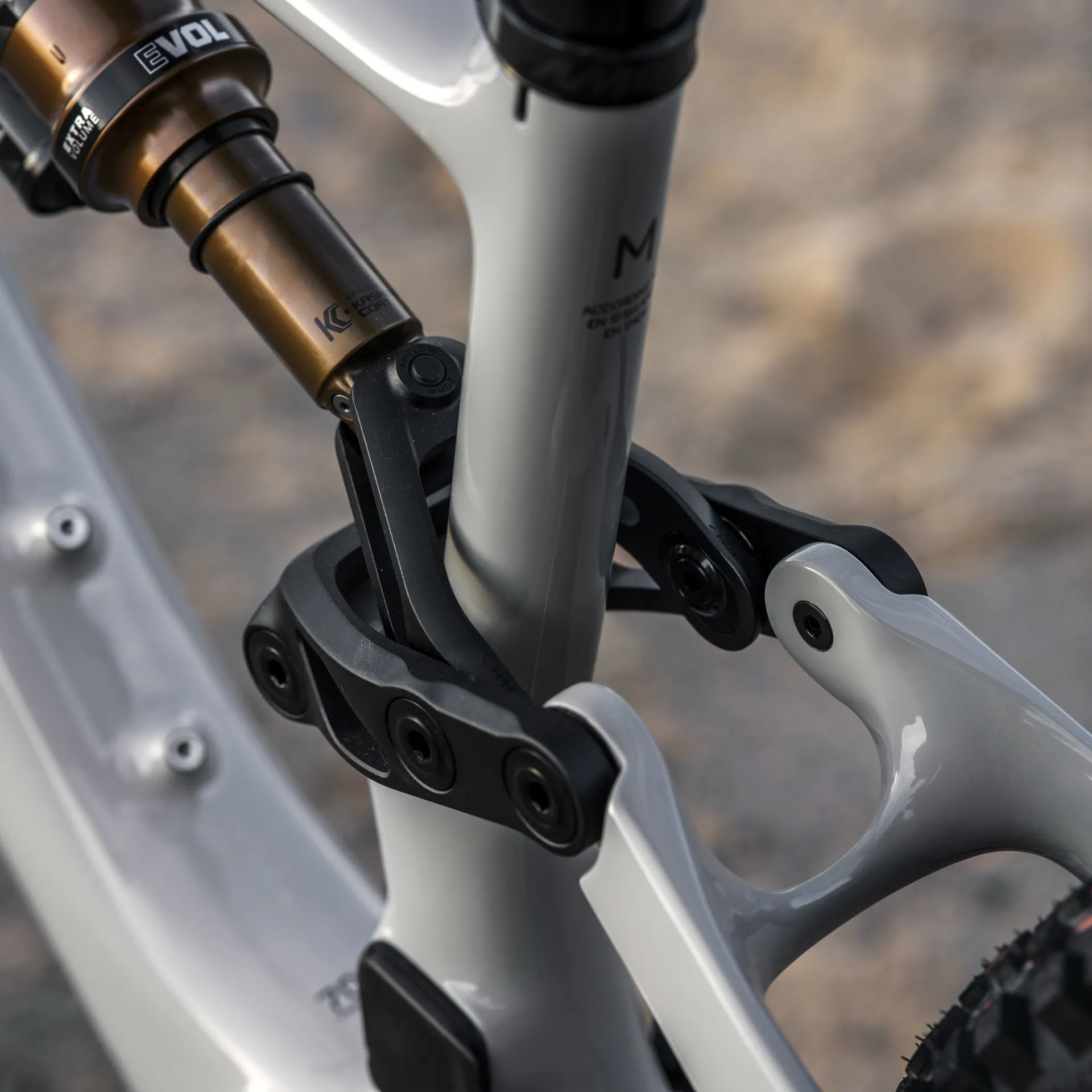

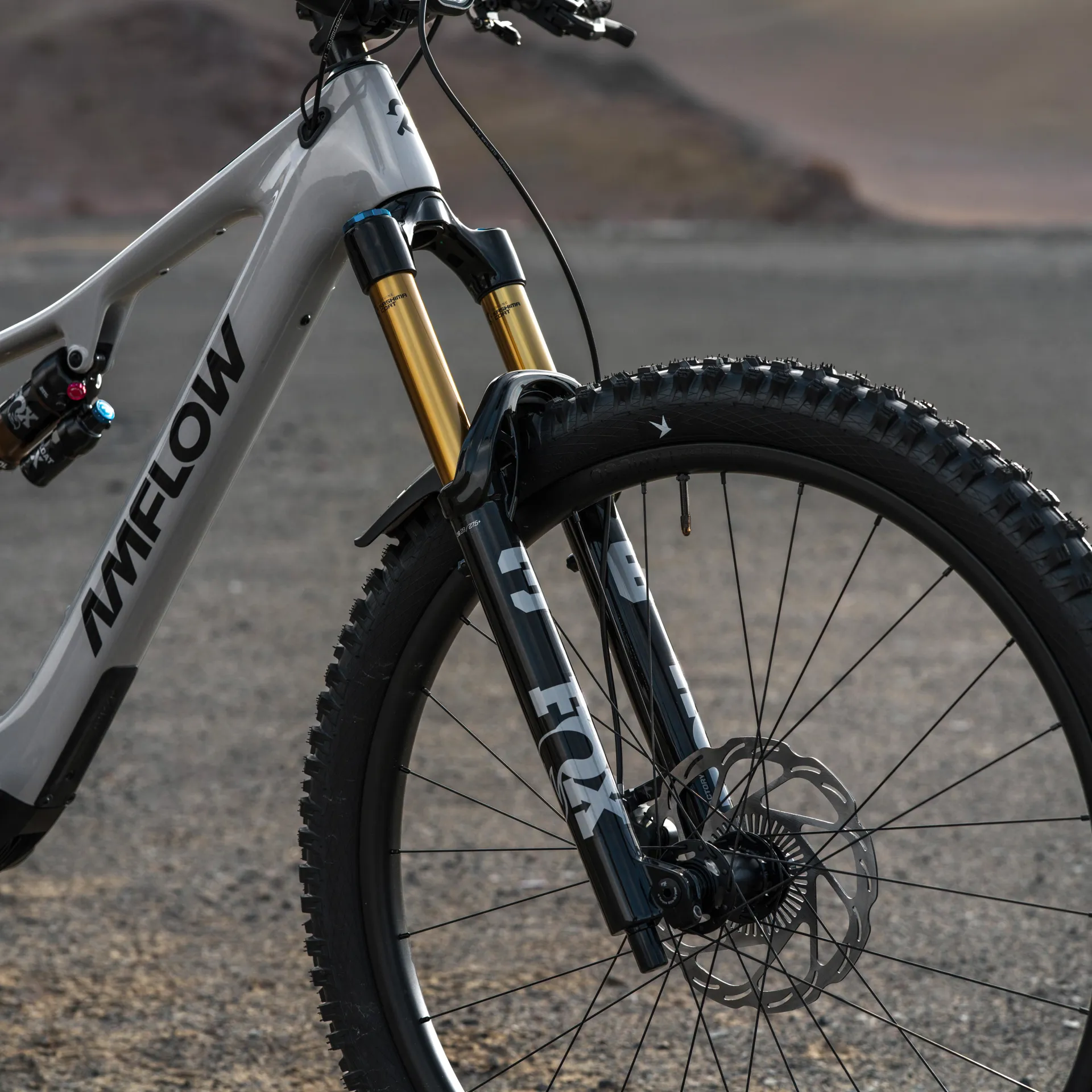

Up front you'll find a FOX 36 Performance fork with 160mm travel, paired with a custom-tuned FOX Float X Performance rear shock.
The result is a suspension setup capable of tackling rocky descents, roots, jumps and technical trails while still offering excellent support and control on faster flowing terrain.
UP TO 40 GEOMETRY CONFIGURATIONS
One of the PX Carbon's standout features is its extraordinary level of adjustability.
The bike provides 5 head tube angle positions, 2 bottom bracket height settings and 4 chainstay length positions, creating up to 40 possible geometry combinations.
That means you can fine-tune your PX towards agile handling and efficient climbing or configure it for greater stability when tackling fast, steep and technical descents.
The PX comes with a 29" front and 27.5" rear mullet setup, while the frame is also compatible with a 29" rear wheel.
SRAM S1000 EAGLE TRANSMISSION
The PX Carbon features a SRAM S1000 Eagle Transmission electronic drivetrain, providing smooth, precise shifting and a huge gear range through its 10-52T cassette.
Integration with the Avinox Drive System enables SmoothShift, creating impressively seamless gear changes and further enhancing the natural riding experience.
MAGURA GUSTAV PRO BRAKES
With this much power and trail capability, serious braking performance is essential.
The PX Carbon comes equipped with powerful Magura Gustav Pro four-piston hydraulic disc brakes, paired with large 203mm rotors for excellent stopping power and control.
SMART TECHNOLOGY
The PX Carbon is every bit as advanced electronically as it is mechanically.

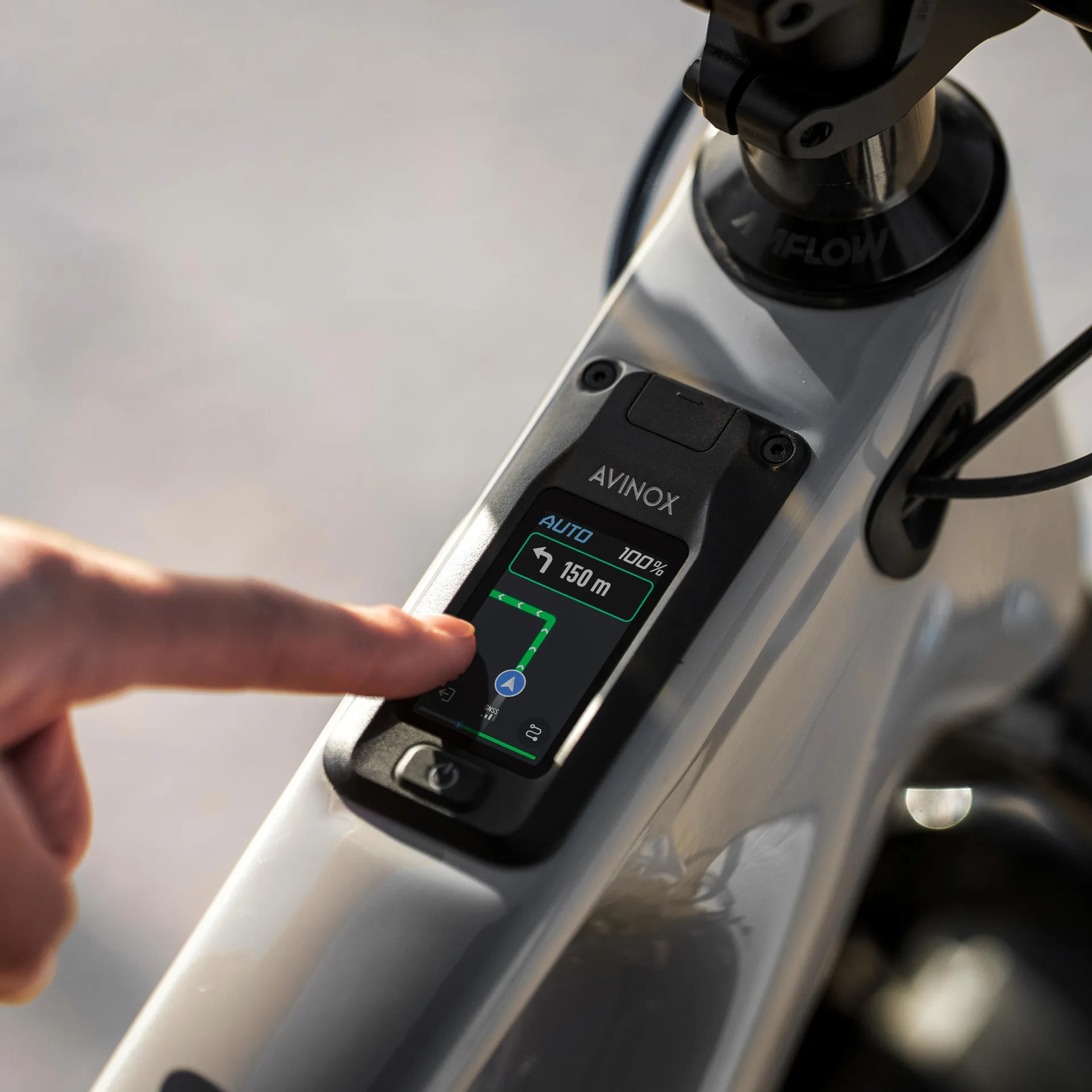

A 2-inch OLED Control Display provides clear ride information and control, while the Avinox Ride app unlocks a range of additional features.
Smart offline navigation allows compatible routes to be imported and transferred to the bike, providing turn-by-turn navigation without requiring your phone to remain connected.
Other intelligent features include customisable assistance modes, GPS, Bluetooth connectivity, OTA updates, smart heart-rate-controlled assistance and remote locating functionality.
KEY FEATURES
Ultra-light carbon fibre frame
Frame weight approximately 2.4kg
Powerful Avinox M2S Drive Unit
130Nm nominal torque
Up to 150Nm maximum torque
Up to 1,500W peak power
M2S motor weight approximately 2.59kg
700Wh integrated battery
Claimed range up to 144km
508W fast charger
FOX 36 Performance fork
160mm front suspension travel
FOX Float X Performance rear shock
150mm rear wheel travel
Up to 40 geometry configurations
29" front / 27.5" rear mullet setup
Compatible with 29" rear wheel
SRAM S1000 Eagle Transmission
SRAM AXS electronic shifting
10-52T cassette
Magura Gustav Pro four-piston brakes
203mm brake rotors
2-inch OLED Control Display
Smart offline navigation
Avinox Ride app connectivity
SmoothShift technology
Intelligent Auto assistance mode
Smart heart-rate-controlled assistance
FULL POWER WITHOUT THE HEAVYWEIGHT FEEL
The Amflow PX Carbon is built for riders who don't want to choose between lightweight handling and full-power electric assistance.
With an ultra-light carbon frame, the incredible Avinox M2S motor producing up to 150Nm of torque, premium FOX Performance suspension and a 700Wh battery, the PX Carbon delivers an exceptional combination of power, weight and trail performance.
And with up to 40 different geometry configurations, you can fine-tune the bike to suit the trails you ride and the way you like to ride them.
Whether you're tackling steep South Downs climbs, technical singletrack, fast descents or heading out for an all-day adventure, the PX Carbon is ready for it.
Available from The Bicycle Exchange – Official Amflow Dealer.
