| FRAME | FeltRoad 3.0 | UHC Advanced + TeXtreme carbon fiber |
| FRAME TECHNOLOGIES | MMC / InsideOut | BOTTOM BRACKET TYPE | Press-Fit | BB386 |
| BRAKE TYPE, REAR | Disc, Flat Mount | 25mm thickness, Ø140mm minimum rotor | DERAILLEUR HANGER TYPE, FRONT | Brazed-On | integrated backup plate, non-replaceable, aluminum |
| DERAILLEUR HANGER TYPE, REAR | Standard Mount | TA 12x142 road, replaceable, aluminum | HEAD-TUBE TYPE | Felt ControlTaper | 43, 47cm: 1.125" / 51, 54cm: 1.125-1.25" / 56, 58, 61cm: 1.125-1.5" |
| PROTECTOR TYPE | Felt ChainPlate for chain suck protection / Clear vinyl for chain slap protection | ROUTING TYPE | Convertible | internal for electronic or external for mechanical |
| SEAT POST / CLAMP TYPE | Standard | 27.2mm post, 30.6mm clamp / 6061 aluminum, steel bolt & nut-bar | WHEEL TYPE | 700c |
| TIRE MAX (CLEARANCE) | 28mm (4mm) | FORK | FeltRoad 3.0 | UHC Advanced + TeXtreme carbon fiber |
| HEADSET | 43, 47cm: IS (IS-2) / 51, 54cm: IS (NO.44) / 56, 58, 61cm: IS (NO.42) | AXLE, FRONT | TA 12x100 |
| AXLE, REAR | TA 12x142 | FORK TECHNOLOGIES | Monocoque construction / Integrated crown race |
| BRAKE TYPE, FRONT | Disc, Flat Mount | Ø140mm minimum rotor | FORK OFFSET | 43, 47cm: 52mm / 51, 54cm: 47mm / 56, 58, 61cm: 43mm |
| HEADSET SPECIFICATION | Top Cap: Felt Tornado / Top Cover: Felt VariableHeight (20mm PC, 4.5mm aluminum) / Bearings: FSA integrated sealed cartridge / Spacers: FSA nylon (10mm, 2x5mm) / Compression Device: for carbon steerer tube / Crown Race: fork integrated | AXLE, FRONT SPECIFICATION | Devox AxleTA 128.5 | 123mm + 5.5mm head, M12 x 1.5P x 16mm, Switch lever compatible |
| AXLE, REAR SPECIFICATION | Devox AxleTA 170-7 | 163mm + 7mm head, M12 x P1.0 x 19mm for Syntace X-12, Switch lever compatible | DRIVETRAIN | 2x11-speed |
| SHIFTERS | 43, 47cm: Shimano 105 R7025 short-reach / 51, 54, 56, 58, 61cm: Shimano 105 R7020 | DERAILLEUR, FRONT | Shimano 105 R7000, braze-on |

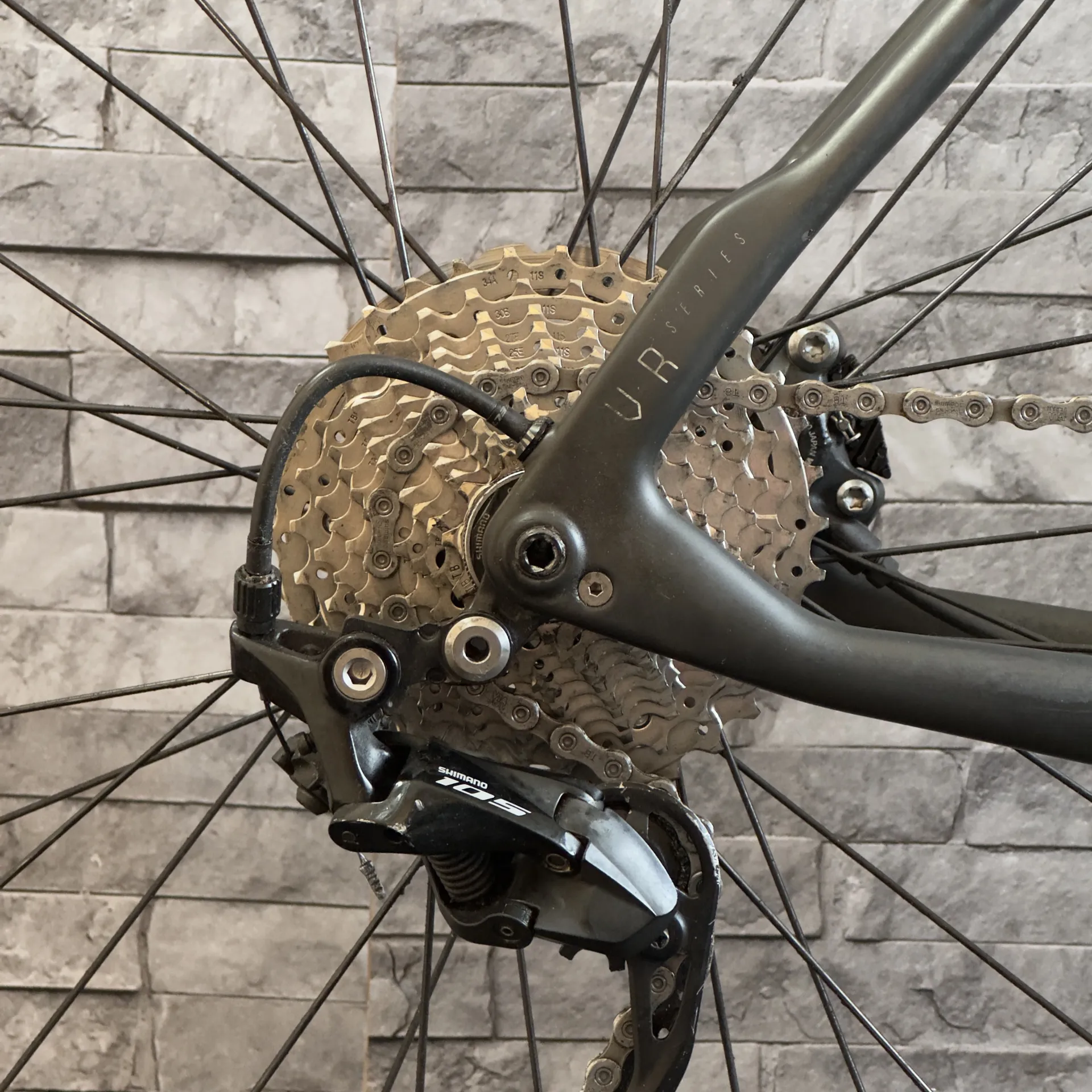

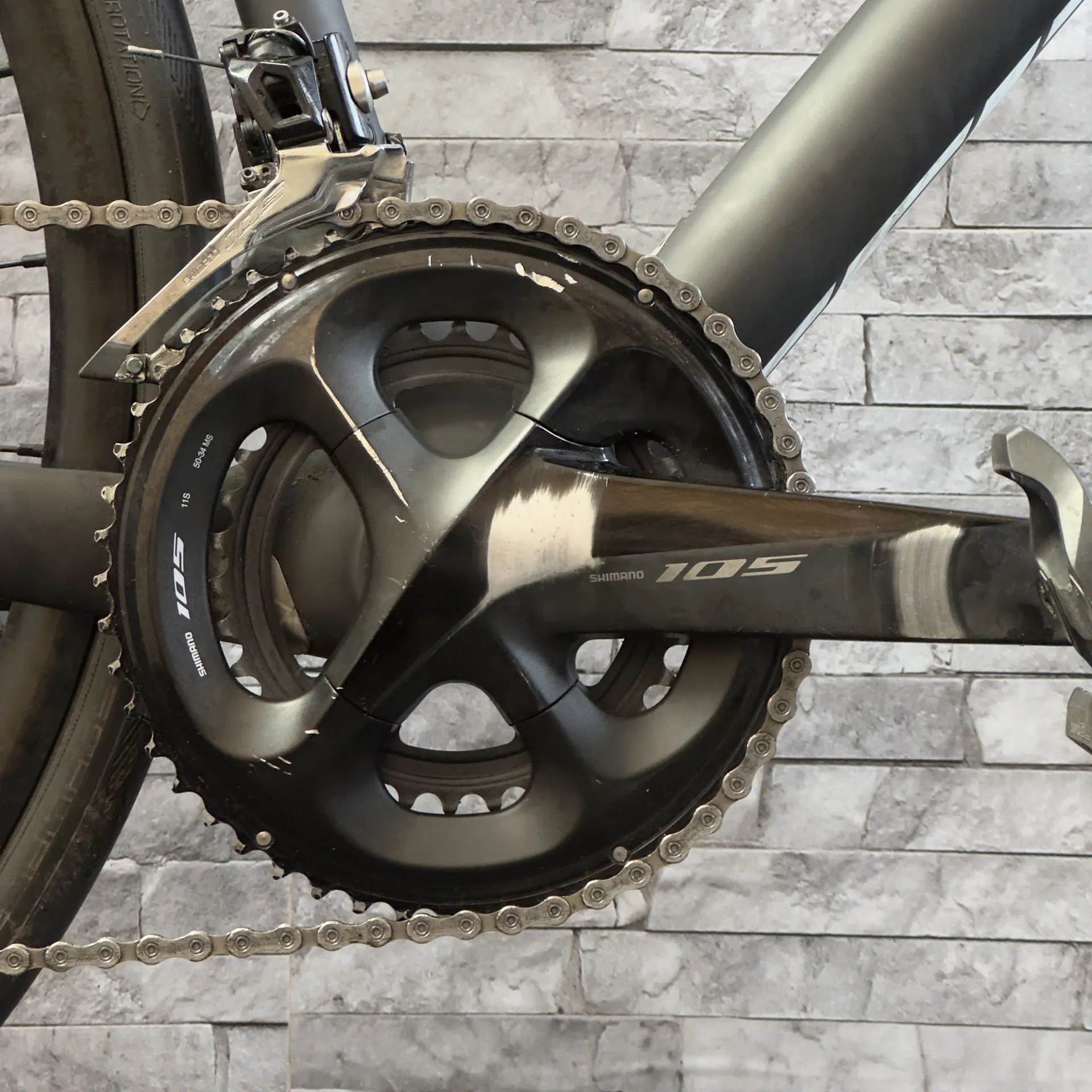

| DERAILLEUR, REAR | Shimano 105 R7000, short cage | CRANK | Shimano 105 R7000, 52/36T |
| BOTTOM BRACKET | Token Ninja Lite, BB386 for Shimano (24mm) | CASSETTE | Shimano 105 R7000, 11-30T |
| CHAIN | Shimano 105 HG601 | CRANK LENGTH | 43, 47cm: 165mm / 51cm: 170mm / 54, 56cm: 172.5mm / 58, 61cm: 175mm |
| BRAKE CALIPERS | Shimano 105 R7070, hydraulic disc, flat mount | BRAKE ROTORS | Shimano RT70, Center Lock, 160/140mm |

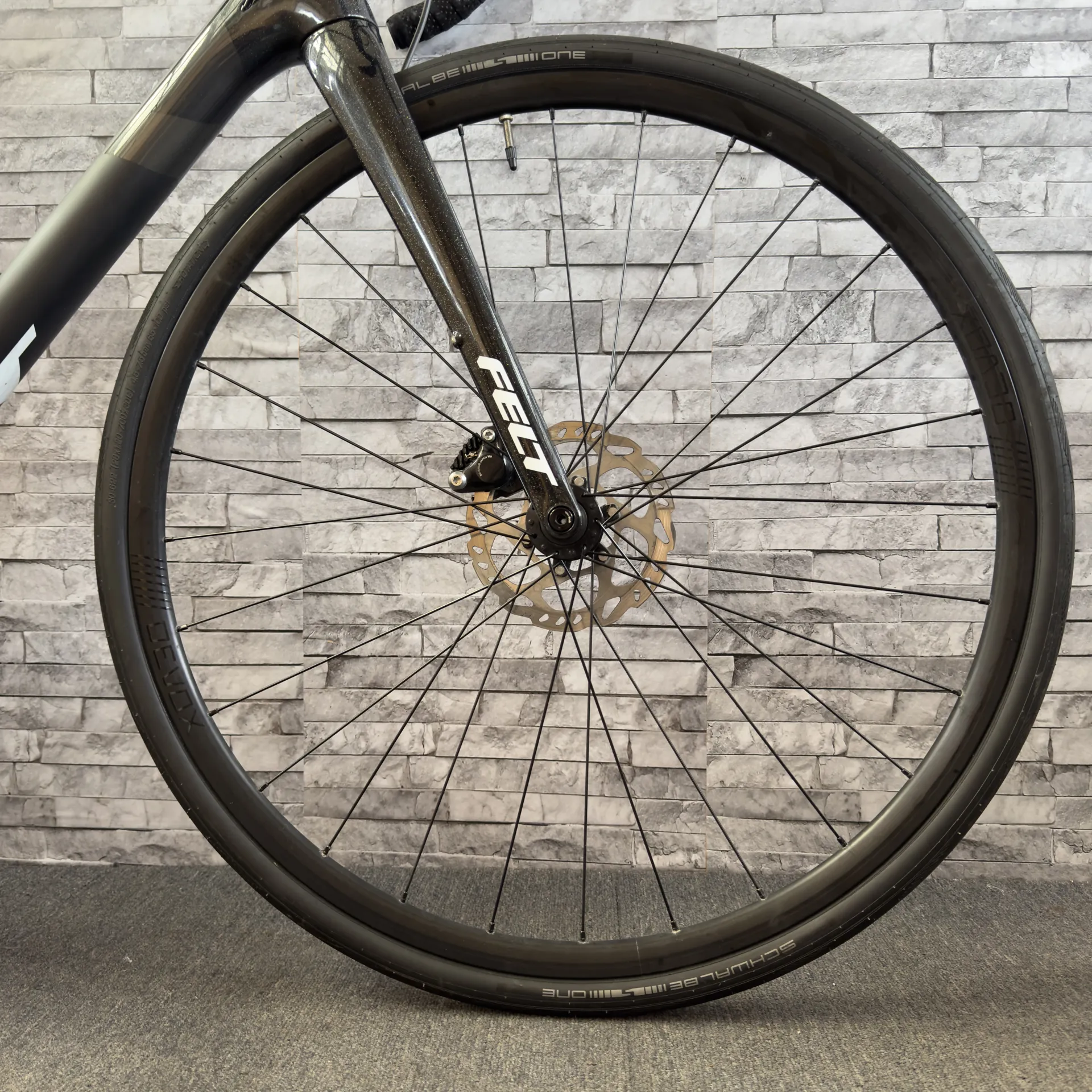

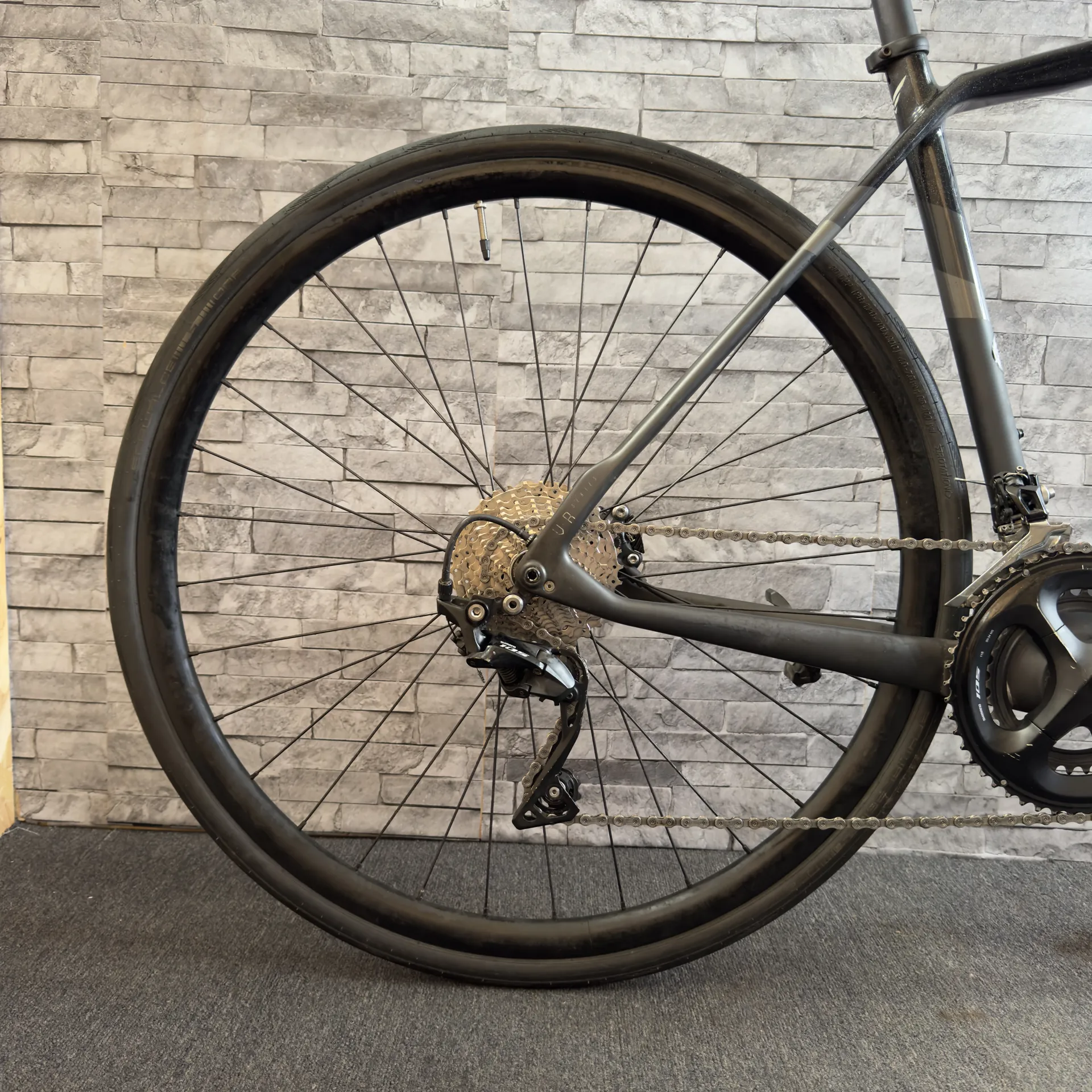

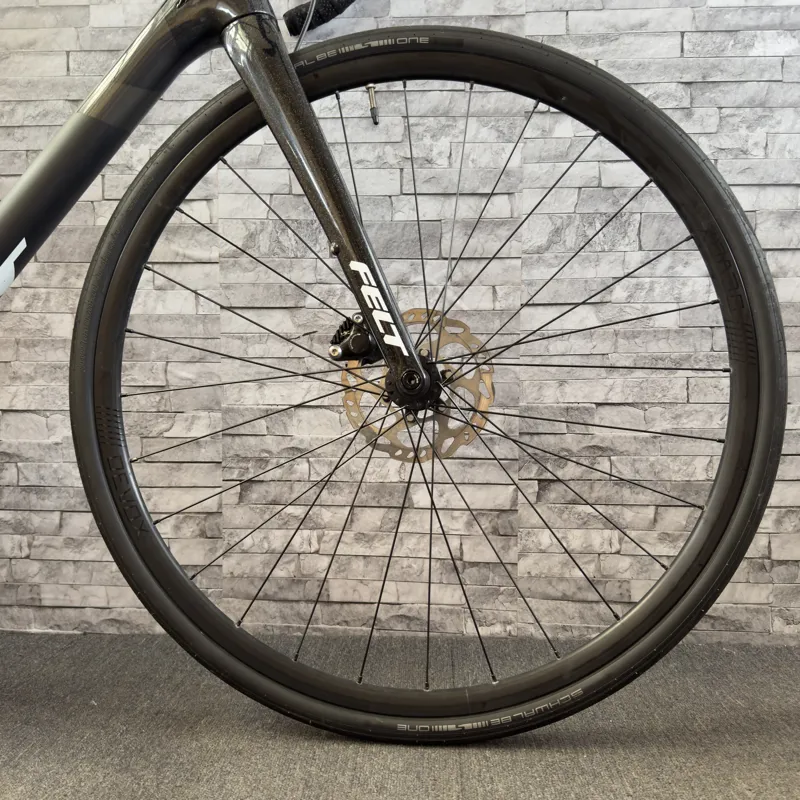

| WHEELS | Devox WheelRDS.A1 with Shimano hubs | 23/19 | TIRES | Vittoria Rubino IV, 700x25c |
| TIRE COMPATIBILITY | Tubeless Compatible | RIMS | Aluminum |
| RIM DEPTH | 23mm | RIM WIDTH, INSIDE | 19mm |
| HUB, FRONT | Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x100 | HUB, REAR | Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x142, 11-speed |
| SPOKES | J-Bend, 2.0, stainless steel, black | NIPPLES | Brass, black |

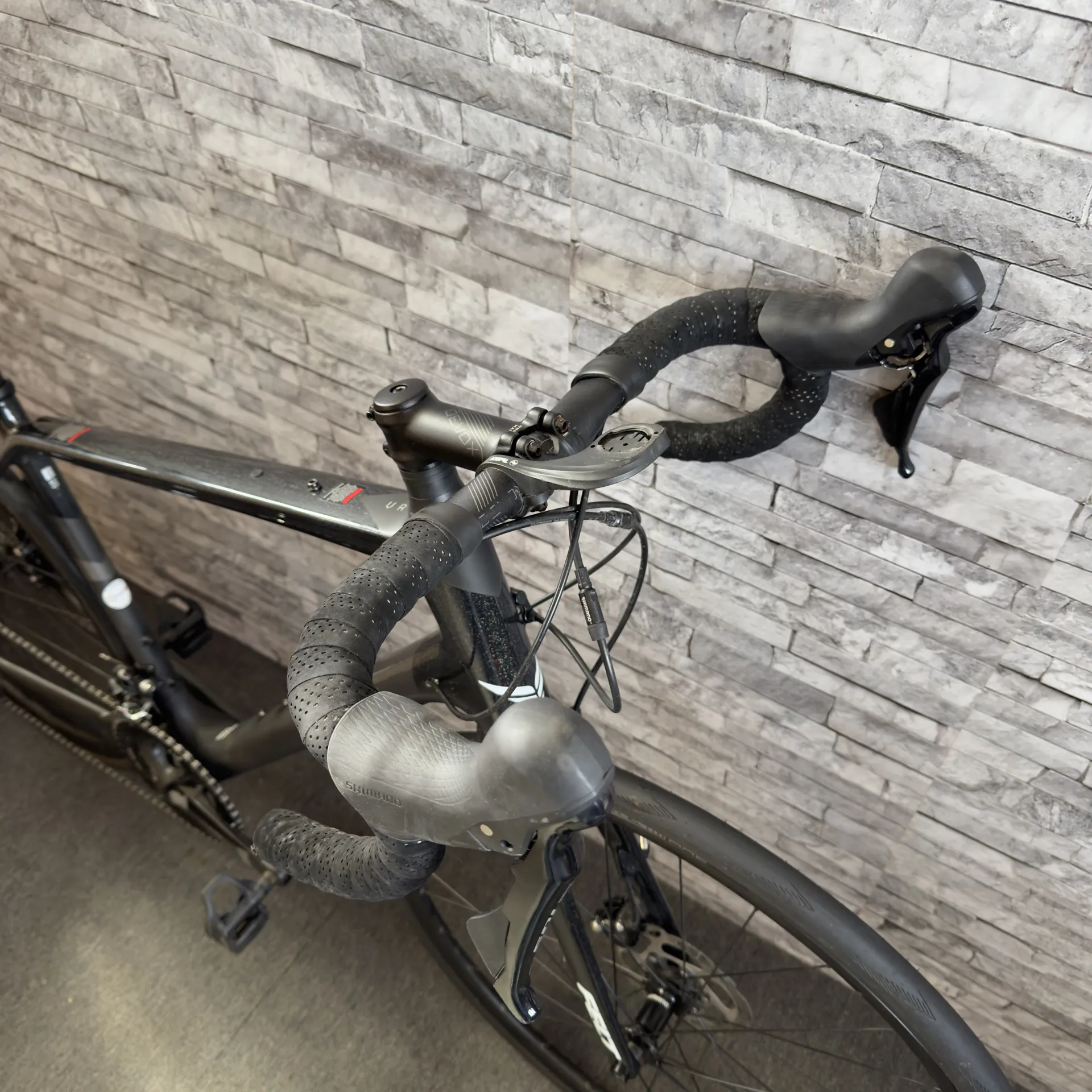

| HANDLEBAR | Devox DBar.A1 | STEM | Devox StemR.A2 6D |
| GRIPS / TAPE | Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs | HANDLEBAR CLAMP DIAMETER | 31.8mm |
| HANDLEBAR DROP | 125mm | HANDLEBAR REACH | 65mm |
| HANDLEBAR WIDTH | 43, 47cm: 38cm / 51cm: 40cm / 54 - 56cm: 42cm / 58 - 61cm: 44cm | STEM CLAMP DIAMETER | 31.8mm |
| STEM ANGLE | ±6° | STEM LENGTH | 43cm: 70mm / 47cm: 80mm / 51cm: 90mm / 54, 56cm: 100mm / 58cm: 110mm / 61cm: 120mm |

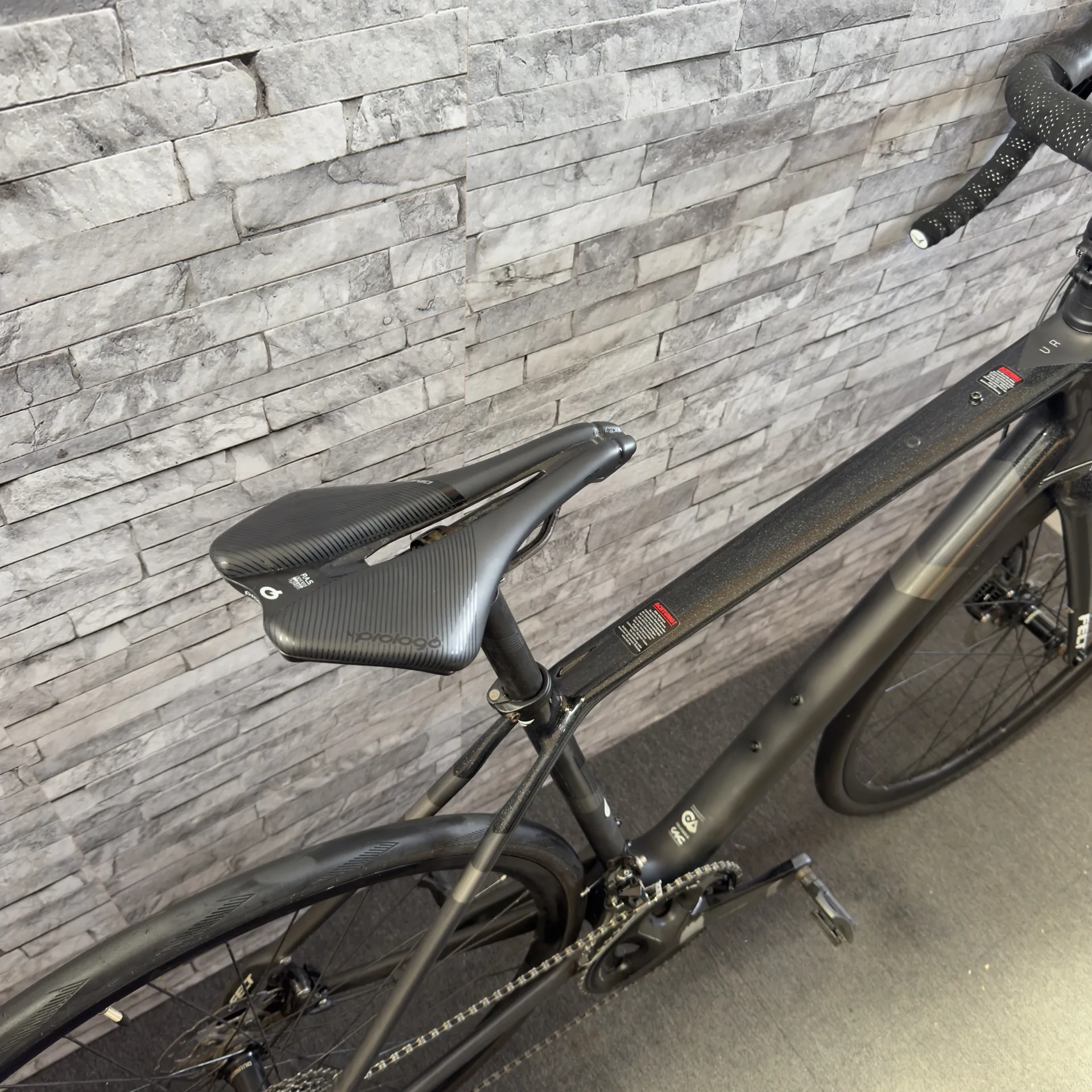

| SEATPOST | Devox Post.C2 Cap | SADDLE | Prologo Dimension 143 STN |
| SEATPOST OFFSET | 0mm | SEATPOST LENGTH | 43, 47, 51cm: 294mm / 54, 56, 58, 61cm: 344mm |
| EXTRAS | Shimano hose fitting kit (2x olives and connector inserts) / Carbon assembly paste |
